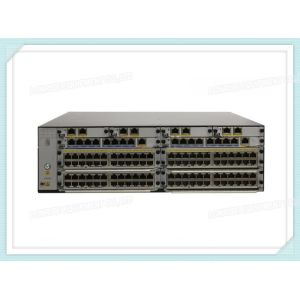

AR3260 Specification |
| WAN Speed with Services *** | 1 Gbit/s (SRU40), 2 Gbit/s (SRU80), 1 Gbit/s (SRU100E), 4.5 Gbit/s
(SRU200), 5.5 Gbit/s (SRU400) |
| Firewall Performance (large packets) | 5.5 Gbit/s (SRU40), 9.5 Gbit/s (SRU80), 10 Gbit/s (SRU100E), 15
Gbit/s (SRU200), 20 Gbit/s (SRU400) |
| Device Switching Capacity | 160 Gbit/s |
| Slot Switching Bandwidth | SIC slots: 2 Gbit/s
WSIC slots: 5 Gbit/s
XSIC & EXSIC slots: 20 Gbit/s |
Number of recommended
users | 2,000 |
| Fixed WAN Ports | SRU40: 3 x GE (2 x Combo) SRU80: 3 x GE (2 x Combo) SRU100E: 4 x GE Combo+ 2 x GE SFP SRU200: 4 x GE Combo+ 2 x 10 GE SFP+ SRU400: 4 x GE Combo+ 2 x 10 GE SFP+ |
| SIC Slots | 4 |
| WSIC Slots | 2 |
| XSIC Slots (default/max**) | 4/6 |
| EXSIC Slots (shared with XSIC) | 1 |
| DSP Slots | 0/3 |
| USB 2.0 Ports | 1/2 |
| Mini-USB Ports | 1 |
| Console Ports | 1 |
| Memory | 2 GB/4 GB |
| Flash (default/max**) | 2 GB/8 GB |
| Maximum Power | 350W (single power module)/700W (dual power module) |
| AC Power | 100V to 240V |
| Frequency | 50 Hz/60 Hz |
| DC Power | -48V to -60V |
| Dimensions (H x W x D) | 130.5 mm x 442 mm x 470 mm |
| Weight | 11 kg (without power module and interface card) |
| Ambient Temperature | 0°C to 45°C |
| Ambient Humidity | 5% to 95% (non-condensing) |
| Basic Features | DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA
client, NAT, and sub-interface management |
| Voice | RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call,
BEST, DISA, and SBC |
| 3G | 3G Interface card (WCDMA) |
| LTE | LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100
Mbit/s) |
| WLAN (AC) | AP management (AC discovery/AP access/AP management), CAPWAP, WLAN
user management, WLAN radio management 802.11a/b/g/n, WLAN QoS
(WMM), and WLAN security (WEP/WPA/WPA2/Key management) |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address
management, and MSTP |
| IPv4 Unicast Routing | Routing policy, static route, RIP, OSPF, IS-IS, and BGP |
| IPv6 Unicast Routing | Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+ |
| Multicast | IGMPv1/v2/v3, IGMP Snooping v1/v2/v3, PIM SM, PIM DM, and MSDP |
| MPLS | LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP
FRR, LDP, FRR, TE FRR |
| VPN | IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN |
| QoS | DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR),
traffic shaping, congestion avoidance (based on IP precedence/DSCP
WRED), congestion management (LAN interface: SP/WRR/SP+ WRRWAN
interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior,
traffic policy), hierarchical QoS, FR QoS, Smart Application
Control (SAC), Hardware QoS |
| Security | ACL, firewall, 802.1x authentication, MAC address authentication,
Web authentication, AAA authentication, RADIUS authentication,
HWTACACS authentication, broadcast storm suppression, ARP security,
ICMP attack defense, URPF, IP source guard, DHCP snooping, CPCAR,
blacklist, and IP source tracing |
| Management and Maintenance | Upgrade management, device management, web-based GUI, GTL,
SNMPv1/v2c/v3, NTP, CWMP, auto-config, deployment using USB disk,
NetConf, and CLI |
