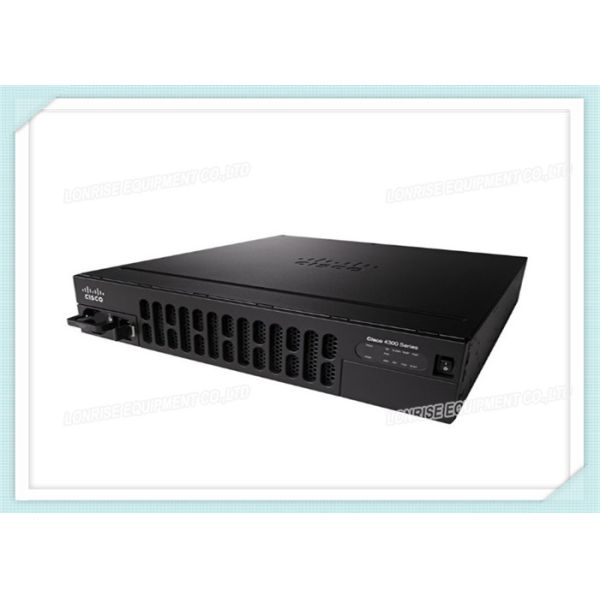

Cisco ISR-4351/K9 Industrial Network Router 2 Service Module Slot 3
SFP Ports Voice
ISR4351/K9 Overview
Cisco 4351 Integrated Services Router, which supports 3 Network
Interface Modules (NIM) slots, delivers 200 Mbps to 400 Mbps
aggregate throughput.
ISR4351/K9 Specification
Cisco ISR4351/K9 Specification |
| Aggregate Throughput | 200 Mbps to 400 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 3 |
| RJ-45-based ports | 3 |
| SFP-based ports | 3 |
| Enhanced service-module slots | 2 |
| Doublewide service-module slots | 1 (assumes no singlewide SM-X modules installed) |
| NIM slots | 3 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
Default memory double-data-rate 3 (DDR3) error-correction-code
(ECC) DRAM (Combined control/services/data planes) | 4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data
planes) | 16 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 4 GB |
| Maximum flash memory | 16 GB |
| External USB 2.0 slots (type A) | 2 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
| Power-supply options | Internal: AC, DC, and PoE |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 7.1 to 3.0A |
| AC input surge current | 60 A peak and less than 12 Arms per half cycle |
| Typical power (no modules) (watts) | 48 |
| Maximum power with AC power supply (watts) | 430 |
| Maximum power with PoE power supply (platform only) (watts) | 990 |
| Maximum endpoint PoE power available from PoE power supply (watts) | 500 |
FAQ
1. Where do your products come from?
All of our products are from Cisco/Huawei distribution ,
Cisco/Huawei partner directly. We are Cisco partner at local, with
cisco verified certification.
2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our
goods are smart net free, all with clean serial number.
3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be
dispatched by express delivery door to door.
4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we
can consider to apply credit accordingly.
