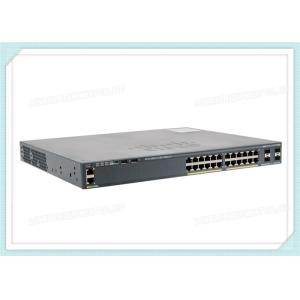

Cisco Catalyst 2960-X series switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations.

WS-C2960X-24PS-L Specification

• Capacity

  • Type :Virtual interfaces (VLANs)
  • Value :1023

• Dimensions & Weight

  • Depth :14.5 in
  • Height :1.8 in
  • Weight :12.79 lbs
  • Width :17.5 in

• Environmental Parameters

  • Humidity Range Operating :10 - 95% (non-condensing)
  • Humidity Range Storage :10 - 95% (non-condensing)
  • Max Operating Temperature :113 °F
  • Max Storage Temperature :158 °F
  • Min Operating Temperature :23 °F
  • Min Storage Temperature :-13 °F

• Flash Memory

  • Installed Size :128 MB

• Header

  • Brand :Cisco
  • Compatibility :PC
  • Manufacturer :Cisco Systems
  • Model :2960X-24PS-L
  • Packaged Quantity :1
  • Product Line :Cisco Catalyst

• Interface Provided

  • Comments :Management
  • Connector Type :Mini-USB Type B
  • Connector Type :Type B
  • Type :Mini-USB
  • Comments :PoE+
  • Connector Type :RJ-45
  • Connector Type :RJ-45
  • Interface :Ethernet 10Base-T/100Base-TX/1000Base-T
  • PoE Power :30 W
  • Qty :24
  • Type :1000Base-T
  • Comments :Uplink
  • Connector Type :SFP (mini-GBIC)
  • Connector Type :SFP
  • Qty :4
  • Connector Type :Type A
  • Qty :2
  • Type :USB
  • Interface :Console
  • Qty :1
  • Type :Console
  • Interface :Ethernet 10Base-T/100Base-TX
  • Type :1000Base-TX

• Miscellaneous

  • Authentication Method :Kerberos, RADIUS, Secure Shell (SSH), TACACS+
  • Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, Directive 2011/65/EU, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, RoHS, UL 60950-1 Second Edition, VCCI Class A
  • Height (Rack Units) :1
  • MTBF :324,280 hours

• Networking

  • Compliant Standards :IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Features :Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Cisco EnergyWise technology, Cisco FlexStack Plus, Class of Service (CoS), DHCP support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Hot Standby Router Protocol (HSRP) support, IGMP snooping, Intrusion Detection System (IDS), IPv4 support, IPv6 support, Jumbo Frames support, Layer 2 switching, Link Aggregation Control Protocol (LACP), MAC Address Notification, MLD snooping, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, NetFlow, PoE+, Port Aggregation Protocol (PAgP) support, Power over Ethernet (PoE), RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), SSH support, Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Unicast Reverse Path Forwarding (URPF), VLAN support
  • Form Factor :Desktop, Rack-mountable
  • Jumbo Frame Support :9216 bytes
  • Manageable :Yes
  • Max Units In A Stack :8
  • PoE Budget :370 W
  • Ports Qty :24
  • Power Over Ethernet (PoE) :PoE+
  • Remote Management Protocol :CLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
  • Stackable :Stackable
  • Status Indicators :Link/activity, PoE, Port duplex mode, Port status, Port transmission speed, RPS (Redundant Power Supply), System
  • Subcategory :Network hubs and switches
  • Subtype :Gigabit Ethernet
  • Type :Switch

• Performance

  • Type :Forwarding performance (64-byte packet size)
  • Value :71.4 Mpps
  • Type :Switching capacity
  • Value :216 Gbps

• Ports

  • Qty :24
  • Type :10/100/1000 (PoE+)

• Ports (2nd)

  • Qty :4
  • Type :Gigabit SFP

• Power Device

  • Features :Redundant Power System (RPS) connector
  • Frequency Required :50/60 Hz
  • Nominal Voltage :AC 120/230 V
  • Power Redundancy :Optional
  • Type :Internal power supply

• Processor

  • Clock Speed :600 MHz

• RAM

  • Installed Size :512 MB

• Service

  • Support Details Full Contract Period :90 days
  • Support Details Service Included :Consulting
  • Support Details Type :Technical support
  • Support Details Full Contract Period :Lifetime
  • Support Details Service Included :Advance parts replacement
  • Support Details Type :Limited warranty

• Service & Support

  • Type :Limited lifetime warranty

• Service & Support Details

  • Response Time :Next business day

• Slot Provided

  • Free Qty :1
  • Total Qty :1
  • Type :Stacking Module slot

• Software

  • Type :Cisco IOS LAN Base
