Omron CJ2M-CPU33 PLC CPU Module | Built-in EtherNet/IP, High Speed Control

    Buy cheap Omron CJ2M-CPU33 PLC CPU Module | Built-in EtherNet/IP, High Speed Control from wholesalers

    Buy cheap Omron CJ2M-CPU33 PLC CPU Module | Built-in EtherNet/IP, High Speed Control from wholesalers
    • Buy cheap Omron CJ2M-CPU33 PLC CPU Module | Built-in EtherNet/IP, High Speed Control from wholesalers
    • Buy cheap Omron CJ2M-CPU33 PLC CPU Module | Built-in EtherNet/IP, High Speed Control from wholesalers
    • Buy cheap Omron CJ2M-CPU33 PLC CPU Module | Built-in EtherNet/IP, High Speed Control from wholesalers

    Omron CJ2M-CPU33 PLC CPU Module | Built-in EtherNet/IP, High Speed Control

    Ask Lasest Price
    Brand Name : Siemens
    Model Number : CJ2M-CPU33
    Certification : CE
    Payment Terms : T/T
    Delivery Time : 2-3 days
    • Product Details
    • Company Profile

    Omron CJ2M-CPU33 PLC CPU Module | Built-in EtherNet/IP, High Speed Control

    Sinamics CJ2M-CPU33 Overview

    The CJ2M-CPU33 is a high-performance compact CPU module for Omron CJ2-series PLCs, designed for reliable and fast industrial automation control. It features built-in EtherNet/IP for seamless network connectivity, 20K steps program capacity, and 64K words data memory to support complex machine and line control tasks. With ultra-fast logic execution at 0.04 μs and expandable I/O up to 2560 points, this unit delivers stable performance for mid-range automation applications. Equipped with USB programming and a serial option slot, it ensures easy setup, debugging, and flexible communication. Ideal for assembly lines, packaging machines, material handling systems, and general factory automation.

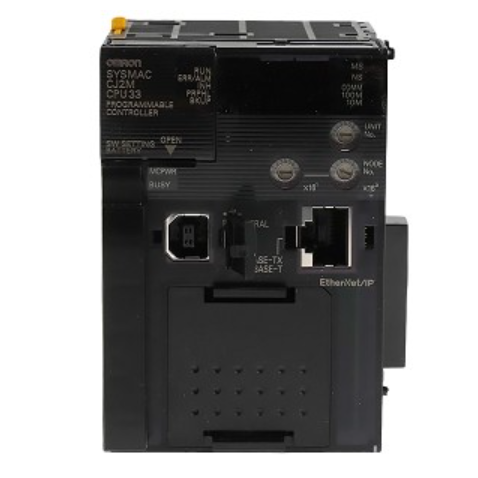

    Figure 1 shows the front panel of CJ2M-CPU33.

    Omron CJ2M-CPU33 PLC CPU Module | Built-in EtherNet/IP, High Speed Control











    Omron CJ2M-CPU33 PLC CPU Module | Built-in EtherNet/IP, High Speed Control












    Quick Specs.

    Table 1 shows the Quick Specs

    Item Specification
    Model CJ2M-CPU33
    Program Capacity 20K steps
    Data Memory 64K words
    Built-in Port EtherNet/IP, USB
    Max Local I/O 2560 points
    Logic Execution 0.04 μs






    Detailed Specification
    Parameter Details
    Product Type PLC CPU Unit
    Series CJ2M
    Program Capacity 20K steps
    Data Memory (DM) 32K words
    Extended Memory (EM) 32K words ×1 bank
    Instruction Speed 0.04 μs (logic execution)
    Max Local I/O Points 2560
    Max Expansion Units 40
    Max Expansion Racks 3
    Communication Ports EtherNet/IP, Ethernet TCP/IP, USB
    Option Port RS-232C/485 (via option board)
    Operating Voltage DC 5V
    Current Consumption 700 mA
    Dimensions 90 × 75 × 62 mm
    Weight Approx. 190 g
    Mounting Panel mount
