Overview

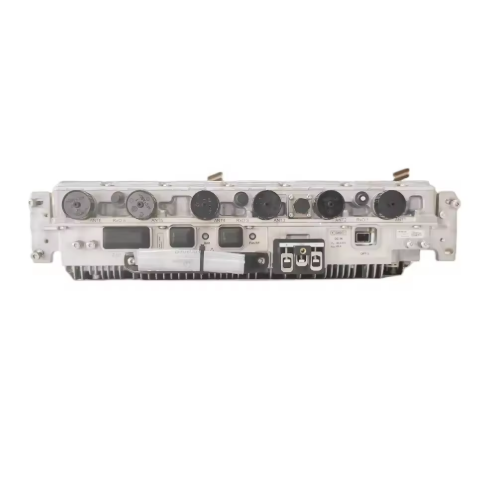

The Nokia 474198A is an AirScale Radio Frequency Module (RFM) for macro cellular networks, specifically a 6T6R (6 Transmit, 6 Receive) unit with a 480W maximum transmit power. It features industrial-grade thermal design for stable operation and is designed for plug-and-play integration with other AirScale components.

Key specifications

• Model: 474198A (or 474198A.101)
• Type: Nokia AirScale RFM (Radio Frequency Module)
• Technology: FDD-LTE
• Frequency Band: Band 3 (1800 MHz)
• Configuration: 6 Transmit, 6 Receive (6T6R)
• Transmit Power: 480W (6x80W)
• RX/TX Frequency Range:
  • Transmit: 1805-1880 MHz
  • Receive: 1710-1785 MHz
• Voltage: DC48V, 20A
• Thermal Management: Industrial-grade die-cast aluminum housing with integrated heat dissipation fins
• Dimensions: 400 * 300 * 120 mm
• Weight: 11 kg
• Network Support: Supports 2G, 3G, and 4G network types
• Environmental: Rated for carrier-grade reliability with an MTBF of over 100,000 hours and compliance with NEBS, RoHS, and REACH standards

Features and benefits

• High Spectral Efficiency: The 6T6R configuration enables high spectral efficiency and advanced MIMO performance for high-capacity networks.
• Superior Thermal Management: The industrial-grade design ensures stable operation even under continuous high power output.
• Wide-Area Coverage: Suitable for deployment in a variety of environments, including urban, suburban, and rural areas.
• AirScale Ecosystem Compatibility: Designed for plug-and-play integration with other Ericsson AirScale systems, which can reduce deployment time.
• Durability: Features a rugged, die-cast aluminum housing for use in harsh environments.
