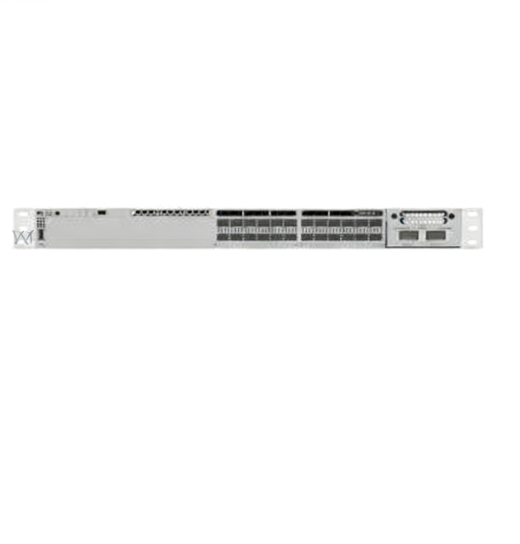

    C9300-24S-E C9300 24-Port 1G SFP Modular Uplinks Network Switch Essential for Network Infrastructure C9300-24S-E

    C9300-24S-E Overview

    The cs C9300-24S-E is a stackable enterprise switch designed to maximize performance, security, and cloud-readiness for modern enterprise networks. As a flagship cs cs solution, it is engineered for mission-critical deployments, delivering powerful switching efficiency and robust feature sets. The stackable enterprise position of the C9300-24S-E allows companies to scale easily, optimize workloads, and streamline network expansion while maintaining a consistent security posture. At its core, the switch integrates advanced security capabilities to safeguard critical assets, offers seamless cloud integration to support agile deployment models, and provides a future-ready architecture guaranteeing easy adaptations to shifting connectivity demands. The architecture excels at high-throughput link aggregation, rapid failover, and virtualization—key for distributed, high-density campus and edge environments. Enterprises leveraging the C9300-24S-E benefit from flexible modular uplinks, enhanced Layer 3 routing, extensive VLAN support, and high MTBF for continuous operation. Cloud-managed features ensure simplified provisioning and monitoring, all while maintaining robust security compliance. In summary, the C9300-24S-E delivers the reliability, scalability, and performance expected from the cs cs line, adapting fluidly to the evolving needs of global organizations in a secure, cloud-enabled environment.

    Product Features Comparison

    ModelC9300L-24P-4G-AC9300-24P-AC9200-24PXG-ADCS-7280QR-C72-R
    Port ConfigurationFixed Modules24 POE+24 × 10/100/1000BASE-T PoE+ (RJ45), 4 × 10G SFP+56× 40 Gigabit Ethernet QSFP+, 16× 100 Gigabit Ethernet QSFP100
    Switching Capacity56 Gbps - 176 Gbps208 Gbps176 Gbps6.4 Tbps
    Forwarding Rate41.66 Mpps - 130.95 Mpps154.76 Mpps130 Mpps2.88 Bpps
    PoE Budgetn/a445WUp to 740W total (30W per port)370W total, IEEE 802.3af/at (PoE+), Max 30W per port
    Stacking CapabilityStackWise-320StackWise-480n/an/a

    ModelC9300-24S-EC9300L-24P-4X-EC9300-24T-AArista DCS-7280PR3-24-M#
    BrandcscscsArista
    Port Configuration24x 1G SFPFixed Modules2424 x 100/400G QSFP-DD
    Switching Capacity208 Gbps56 Gbps - 176 Gbps208 Gbps9.6 Tbps
    Forwarding Rate154.76 Mpps41.66 Mpps - 130.95 Mpps154.76 Mppsn/a
    PoE BudgetN/An/a--n/a
    Stacking CapabilityYes (StackWise-480 & StackPower)StackWise-320Yesn/a

    Optional Add-ons

    Model NumberDescription
    PWR-C1-715WAC-Pcs 715W AC Power Supply, compatible with C9300 Series switches, redundant and hot-swappable.
    C9300-NM-8Xcs cs 9300 8 x 10GE Network Module, provides high-speed uplinks for greater flexibility and scalability.
    C9300-STACKcs StackWise-480 Stacking Cable, enables high-bandwidth stacking for cs 9300 Series switches.

    C9300-24S-E Specification

    Model
    C9300-24S-E
    Brand
    cs
    Total 10/100/1000 or Multigigabit copper ports
    24x 1G SFP
    Uplink Configuration
    Modular Uplinks
    Default AC power supply
    715W AC
    Available PoE power
    N/A
    Dimensions (H x W x D)
    1.73 x 17.5 x 17.7 Inches
    cs StackWise-480
    Yes
    cs StackPower
    Yes
    Default power supply
    PWR-C1-715WAC-P/2
    Switching capacity
    208 Gbps
    Stacking bandwidth
    688 Gbps
    Forwarding rate
    154.76 Mpps
    Total number of MAC addresses
    32,000
    Total number of IPv4 routes (ARP plus learned routes)
    32,000 (24,000 direct routes and 8000 indirect routes)
    IPv4 routing entries
    32,000
    IPv6 routing entries
    16,000
    Multicast routing scale
    8000
    QoS scale entries
    5120
    ACL scale entries
    5120
    Packet buffer per SKU
    16 MB buffer for 24- or 48-port Gigabit Ethernet models, 32 MB buffer for 24 and 48-port Multigigabit
    FNF entries
    64,000 flow on 24- and 48-port Gigabit Ethernet models, 128,000 flows on 24-port Multigigabit
    DRAM
    8 GB
    Flash
    16 GB
    VLAN IDs
    4094
    Total Switched Virtual Interfaces (SVIs)
    1000
    Jumbo frames
    9198 bytes
    Total routed ports cs per 9300 Series stack
    448
    Wireless bandwidth per switch
    Up to 96 Gbps on 48-port Gigabit Ethernet model
    Mean time between failures – MTBF (hours)
    284,130
    Safety certifications
    UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3
    Electromagnetic emissions certifications
    47 CFR Part 15, CISPR22 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317, V-2/2015.04, V-3/2015.04, CNS13438, KN32, KN35, IEC 61000-6-1, EN 61000-6-1
    Environmental
    Reduction of Hazardous Substances (ROHS) 5
