    S-SFP-GE-LH40-SM1310 Overview
    S SFP GE LH40 SM1310 Huawei AR G3 Optical TransceiverS SFP GE LH40 SM1310

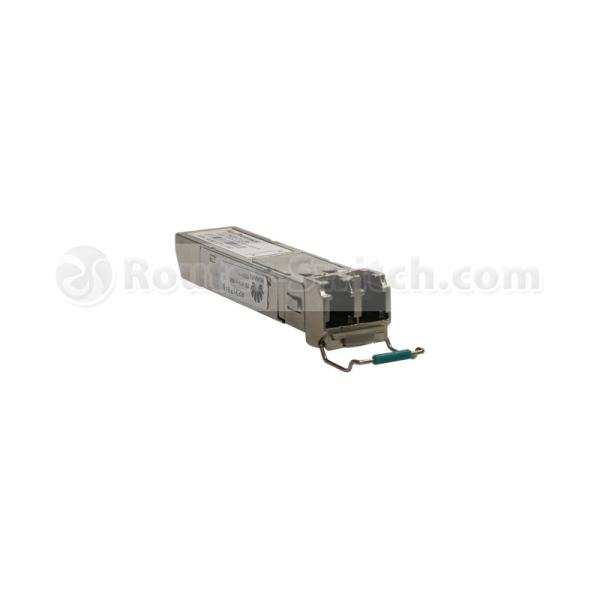

    Huawei S-SFP-GE-LH40-SM1310 is Optical Transceiver. It’s a Single-mode Module.

    Quick Specs

    Table 1 shows the Quick Specs.

    Product CodeS-SFP-GE-LH40-SM1310
    Transceiver form factoreSFP
    Transmission speed1 Gbit/s
    Center wavelength (nm)1310
    Standard compliance1000base-LX/LH
    Connector typeLC
    Applicable cable and maximum transmission distanceSingle-mode fiber: 40 km
    Transmit power (dBm)-5.0 to 0
    Maximum receiver sensitivity (dBm)-23
    Overload power (dBm)-3.0
    Extinction ratio (dB)9
    Operating temperature0°C to 70°C (32°F to 158°F)
    Net Dimension(D x W x H mm)110 x 70 x 37

    The Supported Switches

    Figure 1. S-SFP-GE-LH40-SM1310 can be installed in the switch’s SFP slot.


    Table 2 shows the Huawei hot switches which support S-SFP-GE-LH40-SM1310.

    ModelDescription
    S5700-28P-LI-AC24 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V
    S5700-28TP-LI-AC24 x Ethernet 10/100/1000ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V
    S5700S-52P-LI-AC48 x Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V
    S5700-28P-PWR-LI-AC24 x Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V
    S5700-10P-PWR-LI-AC8 x Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V
    S5720-36C-EI-AC

    28 x Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+,

    1 interface slot, with 150W AC

    S5700-28C-EI-AC24 x Ethernet 10/100/1000 ports, with 1 interface slot, with 150W AC power supply
    S5720-56C-HI-AC48 x Ethernet 10/100/1000 ports, 4 10 Gig SFP+, with 2 interface slots, with 600W AC power supply
    S5720-56PC-EI-AC48 x Ethernet 10/100/1000 ports,4 Gig SFP, with 1 interface slot, with 150W AC power supply
    S5720-56C-PWR-HI-AC48 x Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+, with 2 interface slots, with 1150W AC power supply

    Compare to Similar Items

    Table 3 shows the comparison of S-SFP-GE-LH40-SM1310 and S-SFP-GE-LH40-SM1550.

    ItemS-SFP-GE-LH40-SM1310S-SFP-GE-LH40-SM1550
    Transceiver form factoreSFPeSFP
    Transmission speed1 Gbit/s1 Gbit/s
    Center wavelength (nm)13101550
    Standard compliance1000base-LX/LH1000base-LX/LH
    Connector typeLCLC

    Applicable cable and maximum

    transmission distance

    Single-mode fiber: 40 kmSingle-mode fiber: 40 km
    Transmit power (dBm)-5.0 to 0-5.0 to 0
    Maximum receiver sensitivity (dBm)-23-22
    Overload power (dBm)-3.0-3.0
    Extinction ratio (dB)98.5
    Operating temperature0°C to 70°C (32°F to 158°F)0°C to 70°C (32°F to 158°F)
    Net Dimension(D x W x H mm)110 x 70 x 37110 x 70 x 37
